Wafer Transfer Robot
(Wafer Handler)

Cylindrical Coordinate Clean Robot PHT-R-4

This product is a horizontal articulated robot used in clean rooms.
Back and forth (X-axis), swivel (θ-axis), up-and-down (Z-axis) + hand rotation (0 to 180°) operations are possible, supporting wafer transfer in the atmosphere. The drive motor is an AC servomotor with absolute encoder specifications for all axes.

Download the Brochure Contact Us

Overview

Model
PHT-R-4
Installation Environment
Inside the clean room, in the atmosphere, temperature: 10°C to 35°C, humidity: 70% RH or less
Arm
Single arm
Material: aluminum, CFRP, ceramic
Operating Range
X-axis: 500mm, θ-axis: 340deg, Z-axis: 300mm, Hand rotation: 0-180°
Operating Speed (fastest)
X-axis: 500mm/sec, θ-axis: 200deg/sec, Z-axis: 250mm/sec, Hand rotation: 180deg/sec
Transportable Mass
3kg (total weight of hand base, hand and workpiece)

Robot Standard Specifications

Robot Type
PHT-R-4-2022
Transported Object
～300mm wafer
(We also flexibly customize other special workpieces, shapes, and materials.)
Wafer Holding Method
Vacuum adsorption/edge clamp/edge hold
Machine Structure Type
Horizontal articulated type, Cylindrical coordinate system
Control Axis
4 axes
Motor Type
AC servo motor, Absolute encoder specifications
Weight
Body weight: approx. 47kg; Controller: approx. 8kg
Control Cable
3m (standard), 5m, 10m
Control Specifications (1)
Parallel Interface
Input 32 points
Output 32 points
Control Specifications (2)
Serial Interface
RS-232C × 1 line
Repeatability Accuracy
±0.1mm or less
Degree of Cleanliness
ISO class 2 (0.1μm or more, 10pieces/m³ or less)
Utility
Rated voltage: Single-phase AC200-230V±10%
Rated current: 5A
Vacuum: -80kPa or less 10NL/min or more
Controller Specifications
Controller Type
MFD
Interface
RS232C 1 line Digital IO input: 32 points, DC24V 8mA Output: 32 points, DC24V±3V 0.1A or less

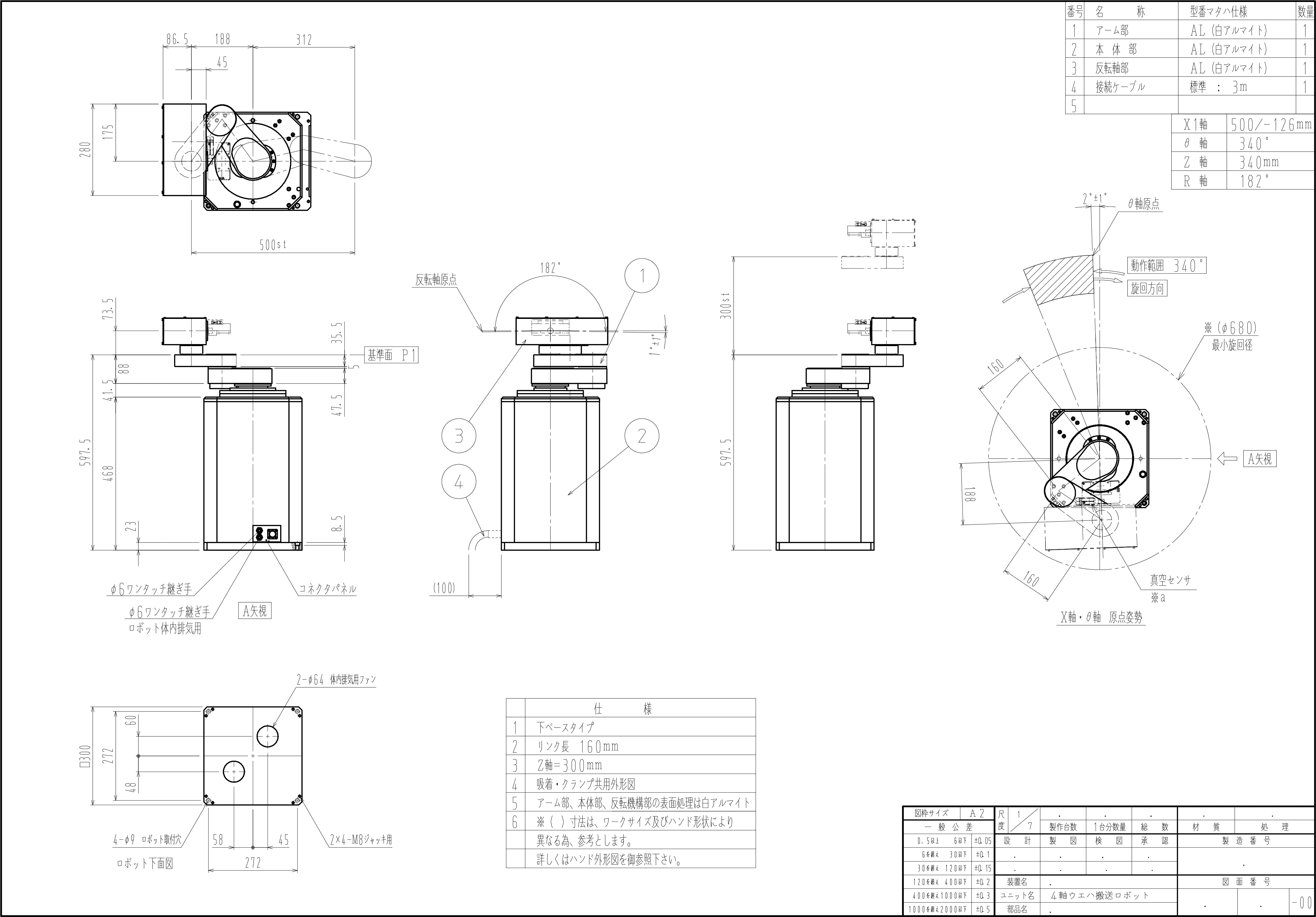

External View
(standard specification)
